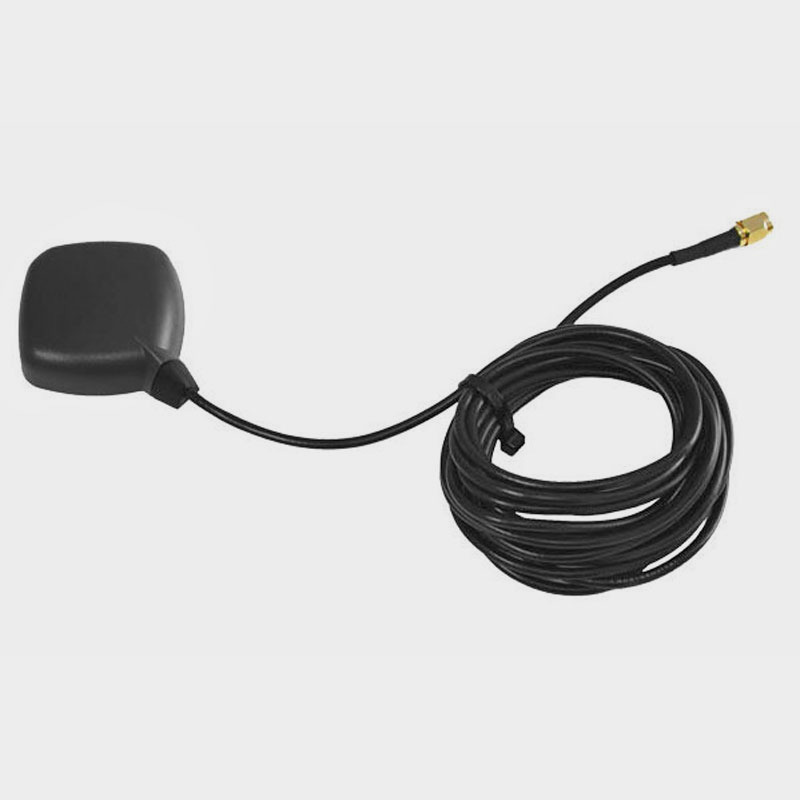

Active GPS/GNSS Antenna

GPS L1 / GALILEO L1, 30 dBi Low Noise Amplifier gain

ESPECIFICACIONES

General data:
Type
Active GPS/GNSS Antenna
High Rejection Filter
No
Electrical characteristics:
GNSS bands
GPS L1 / GALILEO L1
Frequencies
1565 – 1585 MHz
Antenna gain
3 dBic
Antenna gain at 20° angle
-2 dBic
Antennna connector
SMA (m)
Cable length
3 m
Polarization
Right hand circular
Low Noise Amplifier (LNA):
Low Noise Amplifier gain
28 dB @ 3.3 V DC, 30 dB @ 5 V DC
Typical Noise Figure
1,5 dB
Out of Band Rejection
> 30 dB @ +/- 40 MHz
Power supply
2,7 – 5 V DC
DC Current
9 mA @ 3.3 V, 15 mA @ 5 V
Physical characteristics:
Dimensions (WxHxD)
45 x 51 x 12 mm
Ingress Protection
IP67
Weight
120 g
Mounting
Magnetic or permanent
Environmental:
Operating Temperature
-40 – +85 °C
