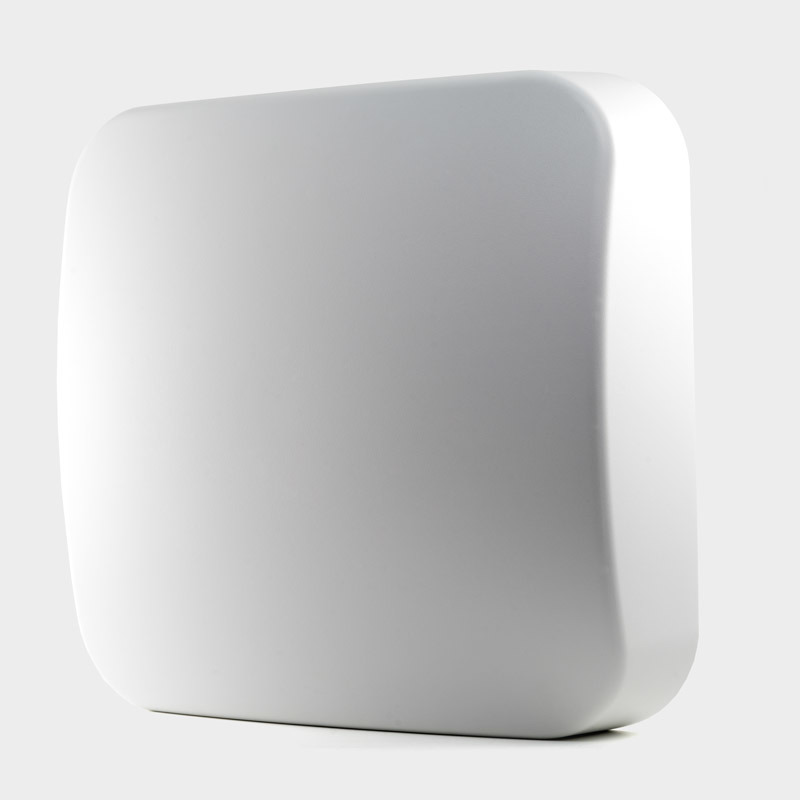

Panel antenna
698 – 960 / 1710 – 2700 MHz, 6.5 / 8 / 6.8 dBi Gain, Outdoor / Indoor
ESPECIFICACIONES
- General data:
- GSM/GPRS/EDGE Frequencies
- 850 / 900 / 1800 / 1900 MHz
- UMTS/WCDMA Frequencies
- 2100 MHz
- LTE Frequencies
- 700 / 800 / 1800 / 2600 MHz
- WLAN Frequencies
- 2.4 GHz
- Frequency Band
- UHF
- Operating Area
- Outdoor / Indoor
- Construction type
- Panel antenna
- Radiation Type
- Directional
- Type
- LTE Antenna
- Frequency ranges
- 700 – 2700 MHz
- Electrical characteristics:
- Frequency range
- 698 – 960 / 1710 – 2700 MHz
- Gain
- 6.5 / 8 / 6.8 dBi
- Power (max)
- 50 W
- Impedance
- 50 Ω
- Polarization
- Vertical / Horizontal
- VSWR
- < 2.0:1
- Isolation
- 20 dB
- Mechanical characteristics:

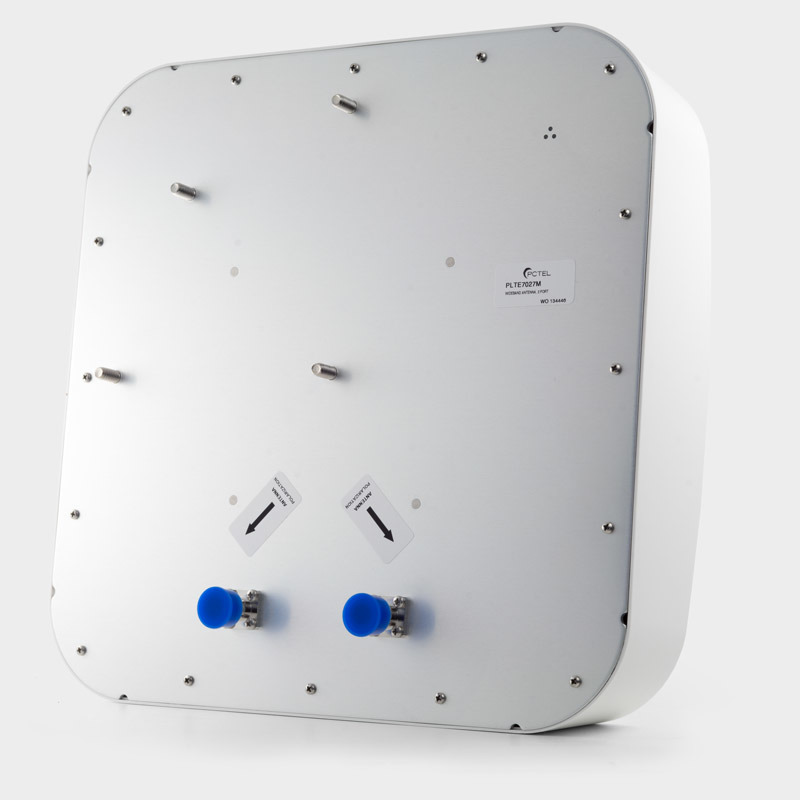

- Available antenna connectors
- N (f) / SMA (m)
- Physical characteristics:
- Material
- UL 94 VHB ASA
- Dimensions (W x H x D)
- 24.9 x 18.2 x 5.1 mm

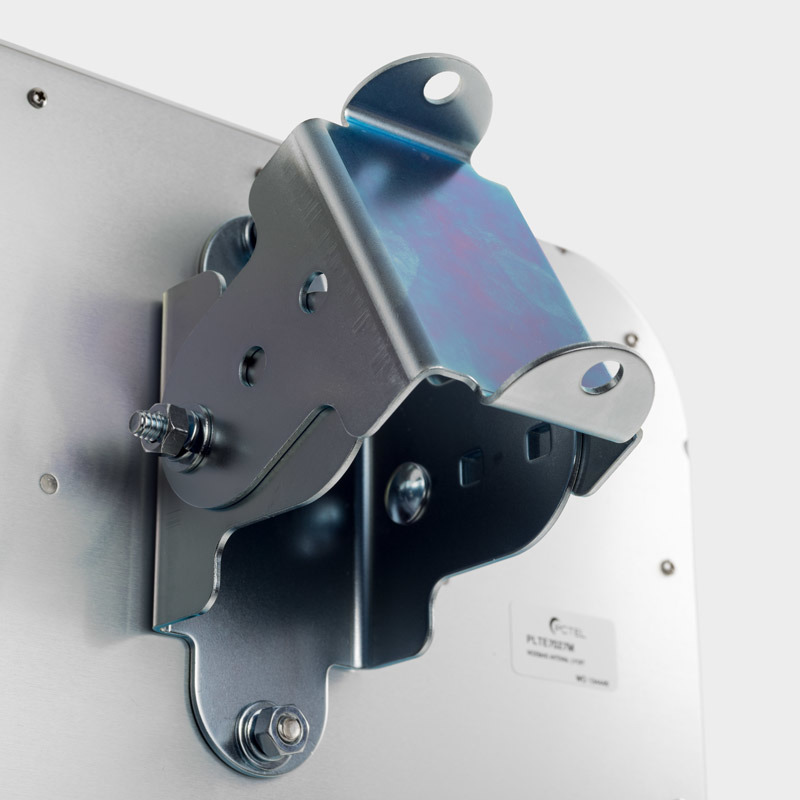

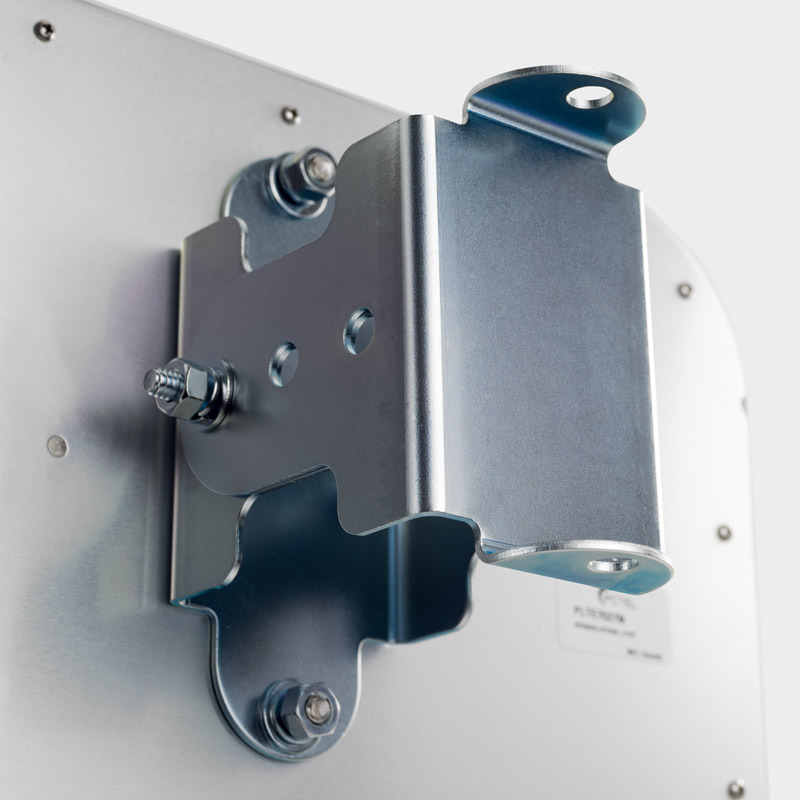

- Mounting
- Wall mount, pole mount
- Environmental:
- Operating temperature range
- -40 – +85 °C
- Ingress protection
- IP67
