Conecte hasta 10 M-Bus estándar
El mBus 10 es un convertidor transparente de M-Bus a la interfaz serie RS-232. El convertidor funciona como un M-Bus Master y le permite alimentar (conectar) hasta 10 receptores M-Bus estándar (los llamados M-Bus Slaves) a través de M-Bus.
Puede utilizar mBus con cualquier dispositivo equipado con interfaz M-Bus, por ejemplo, contadores de calor, contadores de electricidad, contadores de gas, módulos ejecutivos, registradores, instrumentos de medición.
El convertidor dispone de LEDs que indican la transmisión de datos:
- Transmisión (TxD), recepción (RxD) y alimentación (POWER).
- Las interfaces de conexión están formadas por bornas de conexión por tornillo

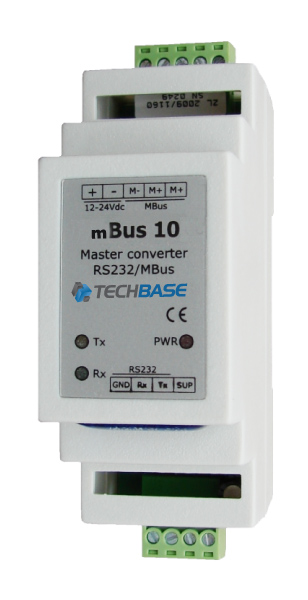

IMÁGENES DE PRODUCTO
[shortcode-variables slug=”contact-product-info”]
Construction | ||
Construction | RS-232/MBus Converter *Ethernet option |
|
Input Interface | ||
Input | Interface | RS-232 *Ethernet option |
Connector | Screw Terminal Block (3 pin) | |
Output Interface | ||
Output | Interface | MBus |
Port number | 1 | |
Maximum baudrate | 300 do 19200 baud/sec | |
Connector | Screw Terminal Block (5 pin) | |
Output Configuration |
Interface | MBus |
Maximum M-Bus slave number | 10 | |
I/O Configuration | ||
Hardware Data Direction Control | No | |
Automatic Data Direction Control | Yes | |
Opto Isolation | ||
M-Bus – Power Supply | No | |
M-Bus – RS 232 | 100V AC/DC | |
Power Supply – RS 232 | 100V AC/DC | |
Surge Protection / Over Voltage Protection | ||
M-Bus Interface | 43V 600W/1ms | |
LED Indicators | ||
Data Transmission | 2xLED (Tx-Yellow, Rx-Green) | |
Power Supply | LED (Red) | |
Power Supply Conditions | ||
Voltage | (+12 – +25)Vdc | |
Current | 0.25 A max | |
Operating Conditions | ||
Temperature | 0…+60°C | |
Dimensions and Waight | ||
Dimensions | Depth | 60 mm |
Width | 34 mm | |
Height | 90 mm | |
Weight | 0,1 kg |
