Diseñado para soportar condiciones extremas
El 4G TK812L es un Router Industrial Machine-to-Machine (M2M) para montaje en carril Din, puede trabajar en redes 2G, 3G y 4G y proporciona conexiones inalámbricas fiables y robustas.
Tiene dos puertos Ethernet y dos conectores de antena SMA. También es compatible con OpenVPN, IPSec, RS-232 y RS-485, lo que proporciona una seguridad de red de alto nivel.
Está diseñado para soportar condiciones extremas, como temperaturas con rangos entre -25 °C y +70 °C y un bajo consumo de energía.

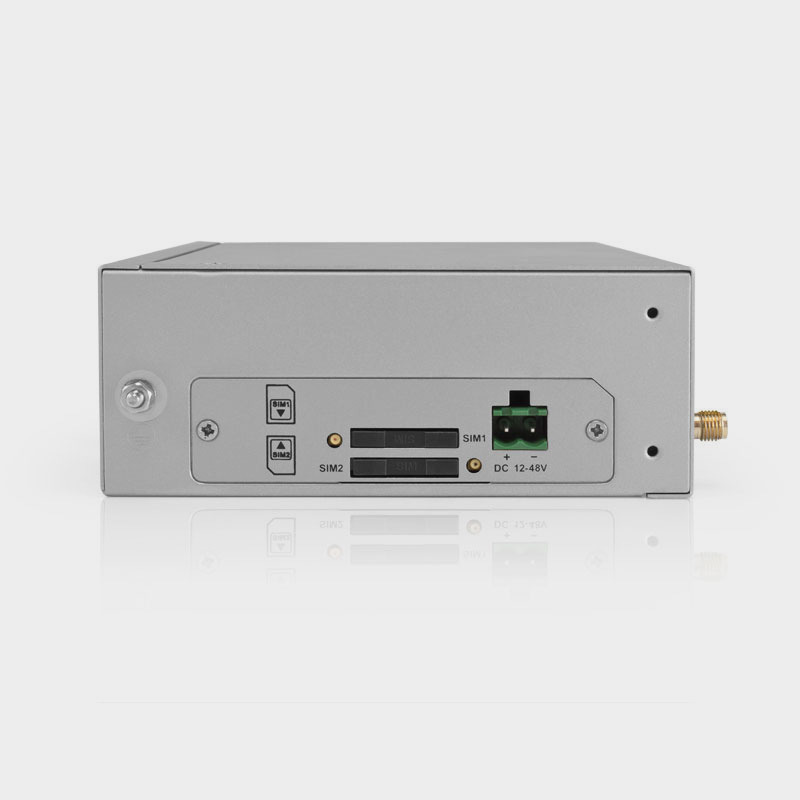

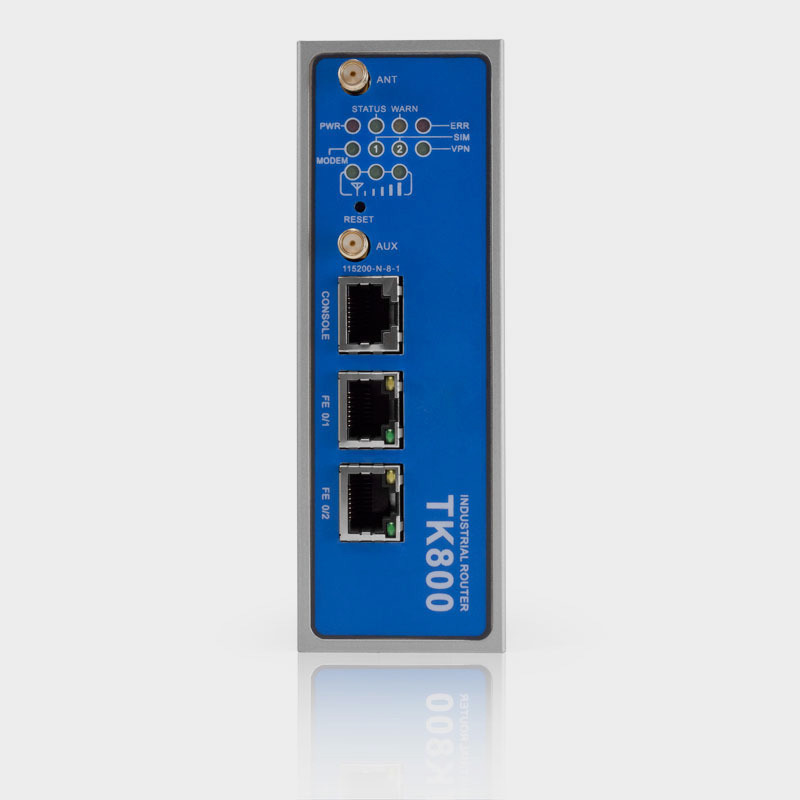

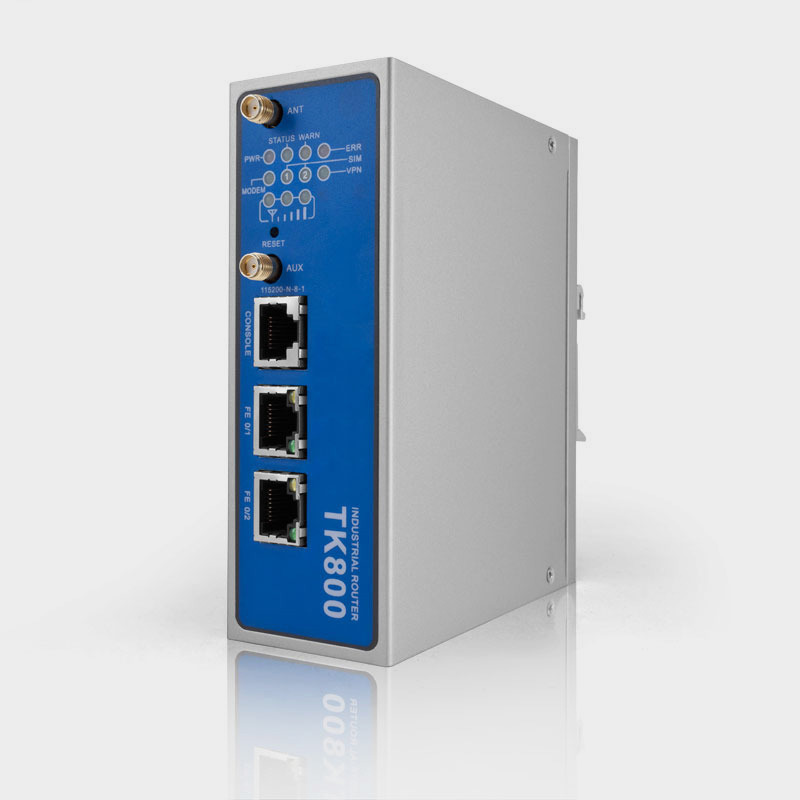

IMÁGENES DE PRODUCTO
[shortcode-variables slug=»contact-product-info»]
ESPECIFICACIONES
- General data:
- Series
- TK800
- Type
- LTE router
- Cellular characteristics:
- Chipset
- Cinterion PLS8-E
- 2G standard
- GSM, GPRS
- 3G standard
- UMTS, HSDPA, HSUPA, HSPA+
- 4G standard
- LTE
- Frequency GSM/GPRS
- 900/1800 MHz
- Frequency UMTS
- 900/1800/2100 MHz
- Frequency LTE
- 800/900/1800/2100/2600 MHz
- Download (max.)
- 100 Mbps
- Upload (max.)
- 50 Mbps
- Authentication
- CHAP/PAP/MS-CHAP/MS-CHAP2
- Cellular antenna connector
- 2x SMA (f)
- APN functions
- APN (Access Point Name), VPDN (Virtual Private Dialup Network, IP VPN of the network operator)
- Dial On Demand
- Always online or dial, SMS or local data transfer
- SMS functions
- Reboot and status SMS
- Ethernet:
- Connector TX
- RJ45
- 10/100BaseTX
- 2 Ports
- IEEE 802.3
- 10BaseT / CSMA/CD (Ethernet)
- IEEE 802.3a
- 10Base2
- IEEE 802.3i
- 10BaseT
- IEEE 802.3u
- 100BaseT(X) / Fast Ethernet
- Additional interfaces:
- Console port
- 1 RJ45 console port (RS-232)
- SIM card slot
- 2
- Network characteristics:
- Routing
- Static routes and dynamic routes with RIP or OSPF
- Network protocols
- ICMP, TCP, IP, UDP, DHCP, NTP, DNS, HTTP, HTTPS, Telnet, ARP, VRRP, PPP, SSH
- Connection inspection
- PPP LCP echo and ICMP keep alive and IP SLA / tracking for checking connections
- NAT and PAT
- Network Address Translation (NAT) and Port Address Translation (PAT)
- DDNS (DynDNS)
- Supports Dynamic DNS
- VRRP
- Automatically switch to slave router if the master router fails
- IPsec
- Tunnel mode, Transport mode, DMVPN
- OpenVPN
- Client
- GRE
- Point-to-Point
- VPN authentication
- Preshared key, digital certificates
- Firewall
- Stateful Packet Inspection (SPI), ACLs
- Access control
- ACLs, RADIUS, TACACS+, LDAP
- Realtime clock
- Provides the system with the current time (NTP)
- Power supply:
- Power supply V DC
- 12 – 48 V DC
- Power supply connector
- Terminal blocks 2-pin (m)
- Power consumption standby
- 2.6 W
- Power consumption aktiv
- 3.6 W
- Software characteristics:
- Configuration
- Webbrowser, Telnet, SSH and Serial port
- Updates
- Webbrowser, Serial port, TFTP, FTP
- Physical characteristics:
- Housing material
- Metal
- Ingress protection
- IP30
- Dimensions (W x H x D)
- 45 x 132.6 x 112.8 mm
- Weight
- 557 g
- Mounting
- DIN rail
- Environmental:
- Operating temperature range
- -25 – +70 °C
- Storage temperature range
- -40 – +85 °C
- Humidity
- 5 – 95 %, non condensing
- Shock
- IEC 60068-2-27
- Free fall
- IEC 60068-2-32
- Vibration
- IEC 60068-2-6
- Approvals:
- Vehicles
- ECE test mark
- EMC, EMI characteristics:
- EDS
- EN 61000-4-2, Level 4
- Surge protection
- EN 61000-4-5, Level 3
- EFT
- EN 61000-4-4, Level 4
- RF
- EN 61000-4-3, Level 3
- RC
- EN 61000-4-6, Level 3
- Oscillatory wave immunity
- EN 61000-4-11, Level 3
- Variation magnetic field immunity
- EN 61000-4-8, Level 5
- Advanced functions:
- Watchdog
- Software and hardware watchdog
- LED
- LED indicators for the signal strength, 8 status LEDs: POWER, STATUS, WARN, ERROR, Modem, 2x SIM, VPN
