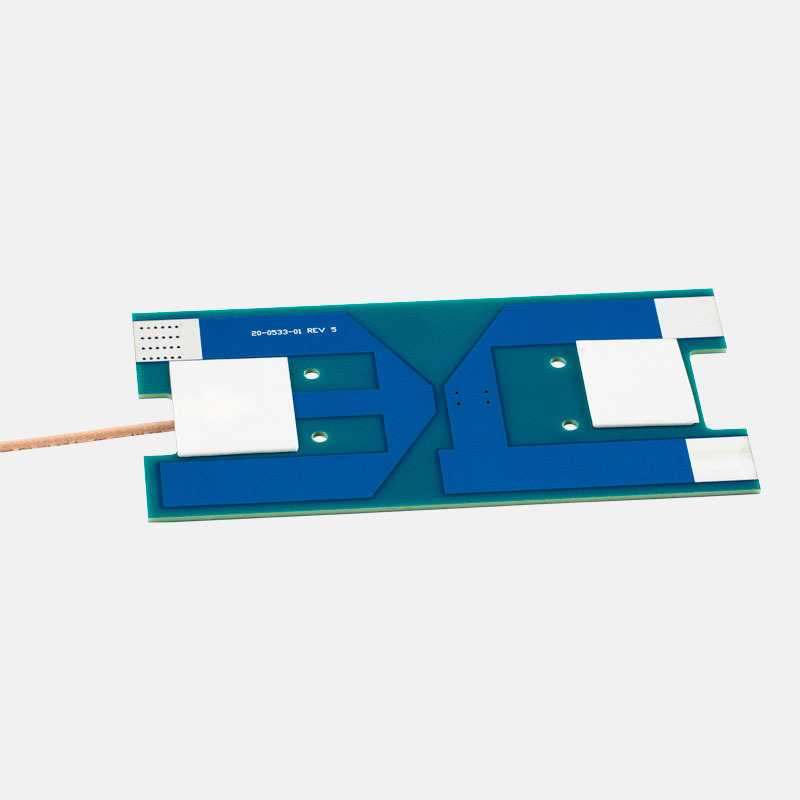

Control cabinet antenna
698 – 960 / 1710 – 2700 , 2 dBi Gain, Indoor only
- General data:
- GSM/GPRS/EDGE Frequencies
- 850 / 900 / 1800 / 1900 MHz
- UMTS/WCDMA Frequencies
- 2100 MHz
- LTE Frequencies
- 700 / 800 / 1800 / 2600 MHz
- WLAN Frequencies
- 2.4 GHz
- License-free ISM Band
- 869 MHz Bereich
- Frequency Band
- UHF
- Operating Area
- Outdoor / Indoor
- Construction type
- Low-profile antenna
- Radiation Type
- Omnidirectional
- Type
- LTE Antenna
- Frequency ranges
- 700 – 2700 MHz
- Electrical characteristics:
- Frequency range
- 698 – 960 / 1710 – 2700 MHz
- Gain
- 3 dBi
- Power (max)
- 150 W
- Impedance
- 50 Ω
- Polarization
- Vertical
- VSWR
- < 2.5
- Mechanical characteristics:
- Available antenna connectors
- SMA (m) / TNC (m)
- Physical characteristics:
- Weight
- 242 g
- Dimensions (W x H x D)
- 36.5 x 101.7 mm
- Mounting
- Bolt-on type
- Environmental:
- Operating temperature range
- -40 – +70 °C
- Ingress protection
- IP66
